Forum Index : Microcontroller and PC projects : my first picomite pcb
| Author | Message | ||||
| tenij000 Newbie  Joined: 30/05/2025 Location: NetherlandsPosts: 22 |
my first picomite pcb tht pcb |
||||
| lizby Guru  Joined: 17/05/2016 Location: United StatesPosts: 3343 |
Congratulations. It's better to post the picture than a link, using this button:   What software did you use to create the PCB? Can you post your schematic? Also gerbers in case anyone else would like to use your design? PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
| tenij000 Newbie Joined: 30/05/2025 Location: NetherlandsPosts: 22 |
i used kicad 9 and where i made the pcb files pcb |
||||
| lizby Guru Joined: 17/05/2016 Location: United StatesPosts: 3343 |
Thanks for that. PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 7806 |

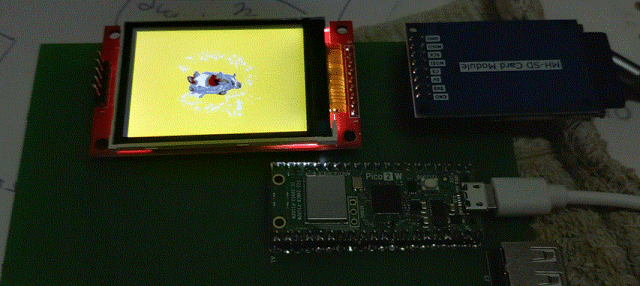

The reason that your picture is dark is probably because the display is brightly lit. The camera tries to photograph the scene as a whole but reduces its sensitivity to prevent the light from the display from over-brightening everything so the rest of the picture looks dark. You can get round this by taking a picture without the display lit or, possibly, by using a very simple display of a few lines or characters on a black background. A nice little board for a first one. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
