Forum Index : Microcontroller and PC projects : A TIVA C dev.board worth mentioning

Author

Message

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 04:14pm 14 Jun 2014

Copy link to clipboard

Print this post

If Chipkit MAX32 would have been like this one, I would have considered developing with PIC32 instead
of SAM D21 - how that sounds? Sorry for the big picture.

Specs:

Tiva TM4C123GH6PGE with 256 KB internal flash in a 144-LQFP package that features 105 GPIOs for excellent prototyping capability
96�64 color OLED display that provides useful output and interface options
USB Micro-AB for prototyping USB OTG applications
MicroSD card slot for data storage
Screw terminals for attaching external sensors and other analog inputs
Precision 3.0-V reference for accurate analog-to-digital conversion
Temperature sensor for temperature monitoring
9-axis motion sensor for motion and position tracking that includes:
3-axis accelerometer
3-axis gyroscope
3-axis magnetometer
All I/Os brought out to headers for easy prototyping
Five user/navigation buttons (including select/wake) for user input
One user-programmable LED
CAN connector
10-pin JTAG header that provides a standard debug interface

Tiva C Series DK-TM4C123G development kit evaluation board preloaded with data logger quick-start application
On-board In-Circuit Debug Interface (ICDI) for easy flash programming and debugging
Cables:
USB Micro-B-plug-to-USB-A for debug function
USB Micro-B-plug-to-USB-A plug cable (connects to PC as a USB device)
SB Micro-A-plug-to-Std-A receptacle cable (connects to USB Flash drive)
3-V CR2032 lithium coin-cell battery
Development Kit USB thumb drive that contains:
Complete documentation
TivaWare� for C Series Firmware
Development package with example source code
Texas Instruments� Code Composer Studio� IDE
Keil� RealView� Microcontroller Development Kit (MDK-ARM)
IAR Embedded Workbench� development tools
Sourcery CodeBench development tools
GCC

Edited by vasi 2014-06-16

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2971

Posted: 06:06pm 14 Jun 2014

Copy link to clipboard

Print this post

Hi Vasi,

I don't know about the board itself but HOW did you get such a wonderful picture posted on TBS forum?

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 06:36pm 14 Jun 2014

Copy link to clipboard

Print this post

Hi Mick,

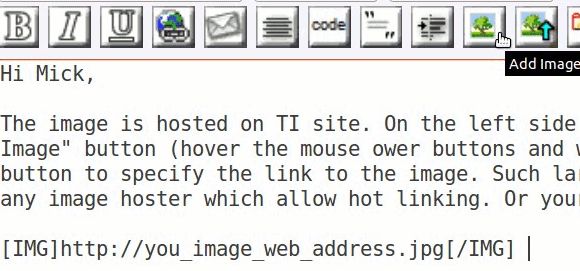

The image is hosted on TI site. On the left side of "Image Upload" button is the "Add Image"
button (hover the mouse ower buttons and wait for the tooltip). I used that button
to specify the link to the image. Such large images can be posted on Flickr
or any image hoster which allows hot linking. Or your website.

Vasi

Edited by vasi 2014-06-16

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2971

Posted: 06:39pm 14 Jun 2014

Copy link to clipboard

Print this post

Thanks Vasi,

That can be very useful..

I will remember that one.

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209

Posted: 09:08pm 14 Jun 2014

Copy link to clipboard

Print this post

Another useful thing when the image is on your own website is to find out how many times that picture is accessed and from where.

Microblocks. Build with logic.

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 4124

Posted: 10:00pm 14 Jun 2014

Copy link to clipboard

Print this post

It's $149 so there are many many boards to choose from that are faster, more flash, more RAM and cheaper as well.

What's special about it to justify $149?

John

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 10:12pm 14 Jun 2014

Copy link to clipboard

Print this post

Hmmm, it seems that you missed the User LED feature ... but it is smd ...
Look man, Mick said is wonderful!

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 05:19pm 19 Jul 2014

Copy link to clipboard

Print this post

Unfortunately, Dave got the wrong board to review...

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang
