Hi to all!

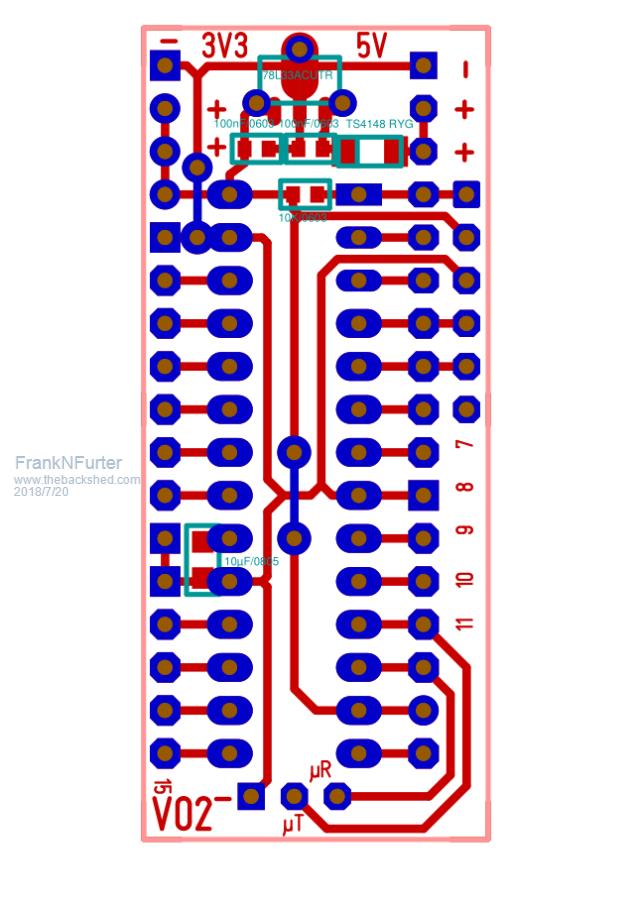

I want to share my little SimpleMite project with you. I developed this one-sided board to quickly test something with the MicroMite.

It can be equipped with an SMD 78L33ACUTR or a THT LT1121CZ-3.3.

You need only two wire bridges on the TOP

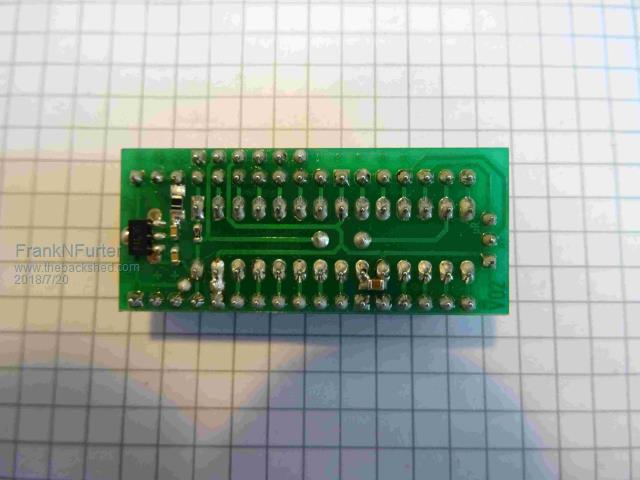

...all other components are on the BOT...

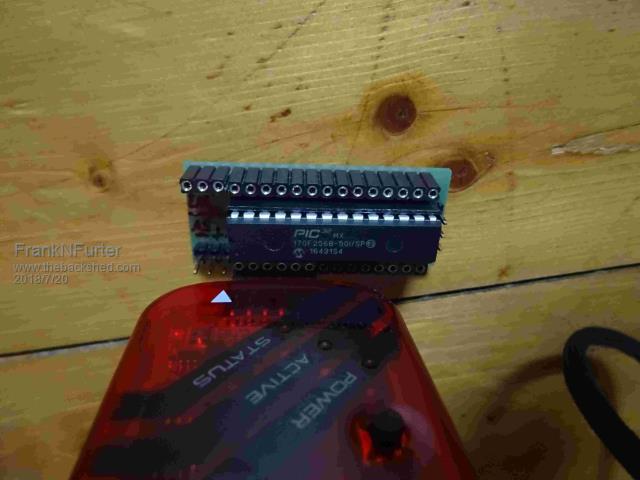

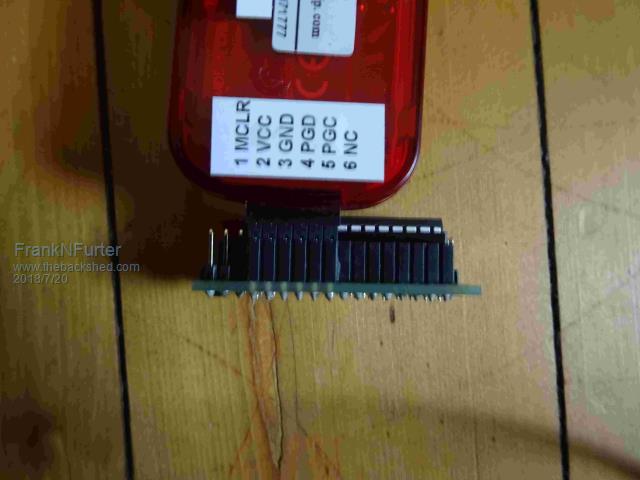

You can program it directly with a PICKit3 without external power supply:

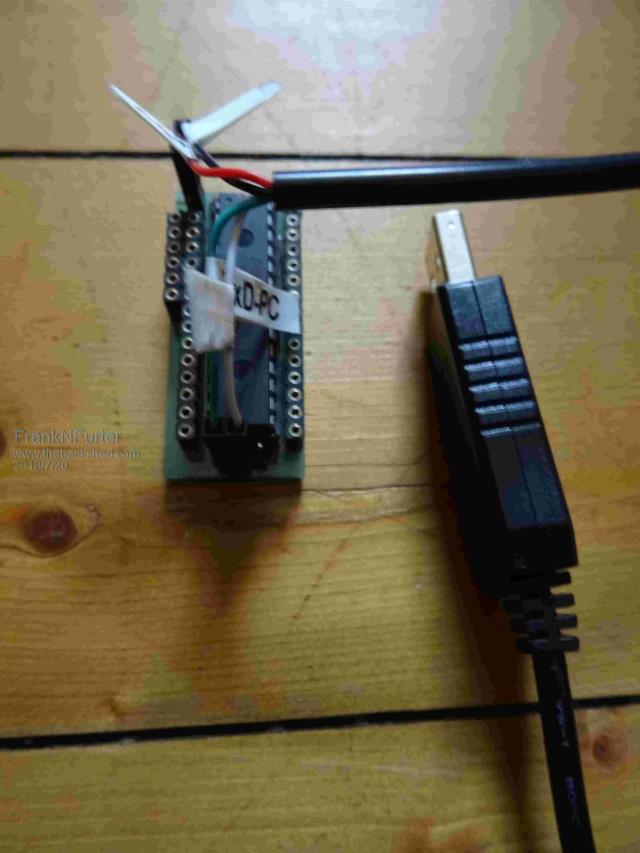

...and you can use it with a USB-SERIAL dongle (like PL2303)...

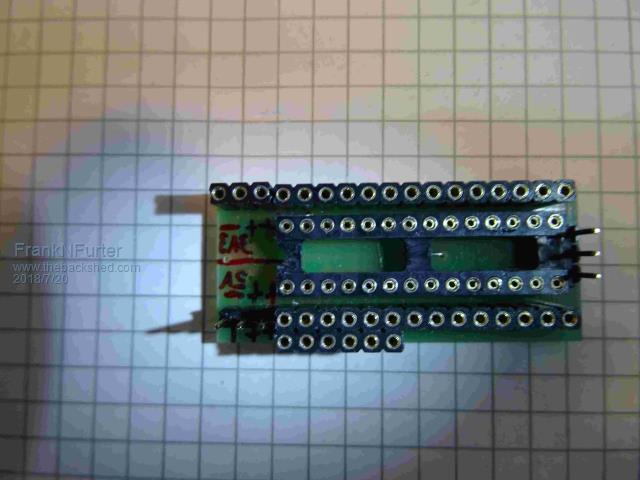

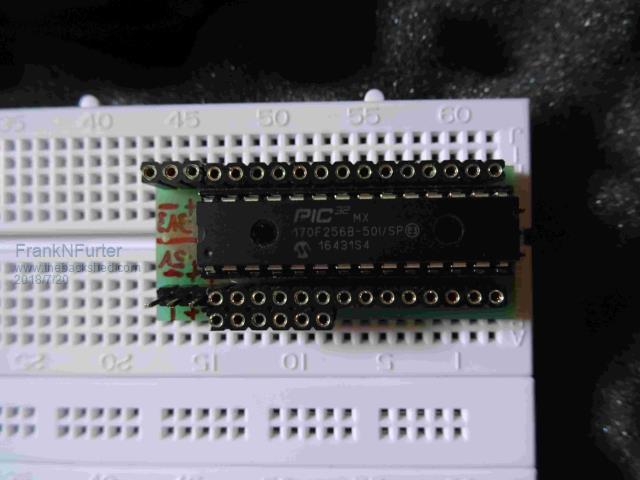

...it's breadboard friendly when you solder longer pins

All pins are led out and the console can be connected directly.

I have no PCB's to sell, but here are the Gerberfiles:2018-07-20_190306_SimpleMite_Gerber.zip

Feel free to use it and have fun!

Frank

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 10043

Posted: 10:00am 20 Jul 2018

Copy link to clipboard

Print this post

Nice one, Danke. Ja, Das ist gut mein frund.

Still learning German, so sorry if this made no sense!

Smoke makes things work. When the smoke gets out, it stops!

CaptainBoing

Guru

Joined: 07/09/2016
Location: United Kingdom
Posts: 2171

Posted: 11:06am 20 Jul 2018

Copy link to clipboard

Print this post

my first foray into SMD mites was something similar - I just wanted a breakout board with all the power and VCap linked up so I just plug it in and start playing - has been a great success. I have gone through three iterations of the board, the first was a very simple beast that was a small as possible on 0.1" spacing (to the point it wasn't breadboard friendly but fine for it's target of mounting in other equipment)

V2 was a bb freindly version with some small mods and V3 is a better silkscreen and a programming port for firmware upgrade. - I have a programming adaptor for 28 pin SOIC devices and I blow the latest stable MMBasic into all the devices so upgrading isn't generally an issue - the thing is got working and then it ends up in some dark cupboard or roof-space for the rest of its life doing the same thing day in day out.

get the PCBs done 50 at a time from JLC and it takes about 10mins to assemble each one. 170s arrive in tubes of 20 at a time when needed and I just rattle them out with the adaptor on the pickit3.

Any that I feel might need an upgraded firmware get a V3, others get a V1 or 2

I plan a version using SSOP to get the width down a bit but 1) there isn't much to gain as I want 0.1mm connection pads, 2) never soldered 0.65mm before

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 1153

Posted: 12:34pm 20 Jul 2018

Copy link to clipboard

Print this post

@Grogster:

(...why are you learning such a horrible language?

When a gangster says, "Du musst den Polizisten umfahren!" means he should kill him. If a driving instructor says exactly the same thing, the student driver has to drive around him. - isn't that silly?)

@CaptainBoing:
This is V2 - My first version had no programming interface either...
Normally I develop complex SMD boards - but this one has proven to be very useful.

Frank

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209

Posted: 01:36pm 20 Jul 2018

Copy link to clipboard

Print this post

German is a great language for when you are angry. :) Great curse words.

Microblocks. Build with logic.

CaptainBoing

Guru

Joined: 07/09/2016
Location: United Kingdom
Posts: 2171

Posted: 01:40pm 20 Jul 2018

Copy link to clipboard

Print this post

@Frank N. Furter

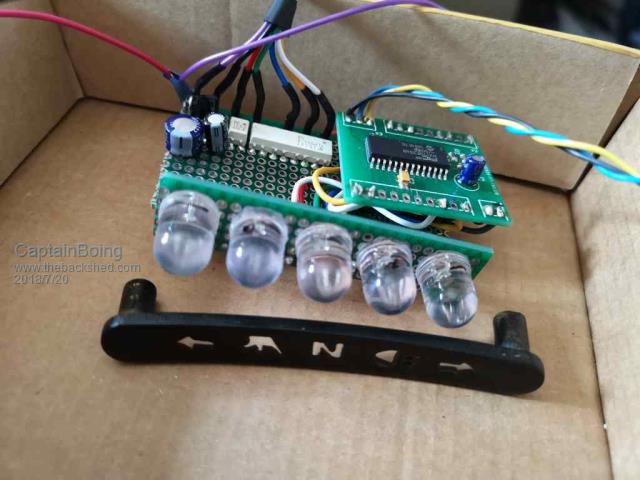

here's a Mk1 going in a Harley Davidson FDX on Monday.
