Looks like it uses FluidNC.

Maslow CNC

zeitfest
Guru

Joined: 31/07/2019
Location: Australia
Posts: 642

Posted: 03:35am 18 Sep 2025

Copy link to clipboard

Print this post

Road the cross chicken the did why ?

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 5542

Posted: 06:29am 18 Sep 2025

Copy link to clipboard

Print this post

In the video you see only the mill. There is a second (stationary) device, that has angular and linear decoders.

But yes... it is new.

Volhout

PicomiteVGA PETSCII ROBOTS

dddns
Guru

Joined: 20/09/2024
Location: Germany
Posts: 715

Posted: 07:51am 18 Sep 2025

Copy link to clipboard

Print this post

I think it works like this: you guide the milling machine by hand and only have to move within certain limits. The rest is compensated for by an X/Y suspension controlled by stepper motors and calculated by the PC using CAD software. This allows you to achieve very precise results on large surfaces without any wobbling. The width within which you have to move is several centimeters and easy to maintain.

Translated with DeepL.com (free version)

AFAIK, my brother told me about this invention 3 years ago, there is a camera build in and you look at a screen where to move

Saw the video too late. This is much further developed :)
Edited 2025-09-18 17:57 by dddns

dddns
Guru

Joined: 20/09/2024
Location: Germany
Posts: 715

Posted: 08:41am 18 Sep 2025

Copy link to clipboard

Print this post

Volhout said In the video you see only the mill. There is a second (stationary) device, that has angular and linear decoders.
Volhout

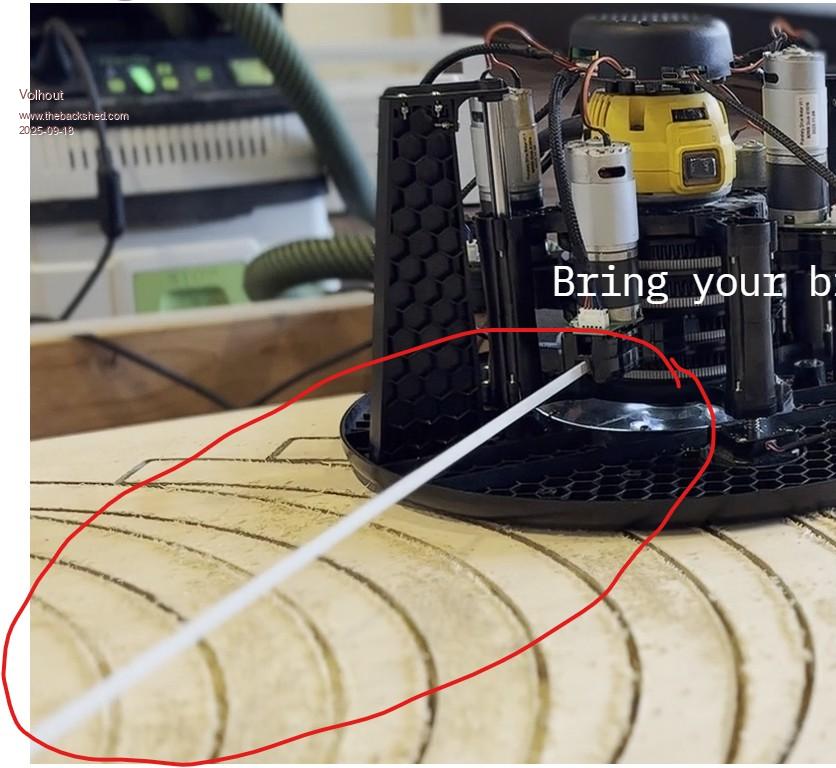

I think the decoder sits between the "r" and your red circle. The belts go through the machine and are just fastened at their ends. The motor on top drives it.Very low cost and clever.

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 1682

Posted: 10:32am 18 Sep 2025

Copy link to clipboard

Print this post

I'm on the road with only my phone so haven't checked it out yet.

BUT I'm sure I saw mention of servo motors and encoders(?)

FluidNC supporting servos and encoders?

News to me. I thought I'd be the first to do this, using a PicoMite and taking pulse/direction from FluidNC.

DaveJacko
Regular Member

Joined: 25/07/2019
Location: United Kingdom
Posts: 86

Posted: 09:48pm 19 Sep 2025

Copy link to clipboard

Print this post

I did something similar with a micromite..probably about 100 lines of code
2 minute video here
https://www.youtube.com/watch?v=Buybf25-wbg
it can't be that clever, if I can do it

using gravity as the 2nd and 3rd axis helps

Try swapping 2 and 3 over

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 1682

Posted: 12:57pm 22 Sep 2025

Copy link to clipboard

Print this post

DaveJacko said I did something similar with a micromite..probably about 100 lines of code
2 minute video here
https://www.youtube.com/watch?v=Buybf25-wbg
it can't be that clever, if I can do it

using gravity as the 2nd and 3rd axis helps

LOVE this thing

PeteCotton

Guru

Joined: 13/08/2020
Location: Canada
Posts: 583

Posted: 02:58pm 22 Sep 2025

Copy link to clipboard

Print this post

DaveJacko said I did something similar with a micromite..probably about 100 lines of code
2 minute video here
https://www.youtube.com/watch?v=Buybf25-wbg
it can't be that clever, if I can do it

using gravity as the 2nd and 3rd axis helps

That is very cool!
