TheBackShed.com

Forum Index : Microcontroller and PC projects : MMBasic V6.03.00 release candidates

Page 10 of 12

Author

Message

toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 644

Posted: 02:31pm 22 May 2026

Copy link to clipboard

Print this post

Here's the latest on the Pimoroni errors:

The problem with the system rebooting after editing a file seems to be a combination of having both WiFi and PSRAM active at the same time. If I disable either one or both, then I don't get errors. Right now, I'm prioritizing PSRAM so WiFi access is turned off on my two PicoCalc systems. The Pimoroni Pico Plus 2 W has more features than the Raspberry Pi Pico 2W but it seems less stable when overclocked.
Edited 2026-05-23 02:14 by toml_12953

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11367

Posted: 05:13pm 22 May 2026

Copy link to clipboard

Print this post

V6.03.00RC11
PicoMiteRP2040V6.03.00RC11.zip
PicoMiteRP2350V6.03.00RC11.zip

Changes to all VGA and HDMI versions.
See demo

Fix for I2C bug
Timing change to WebMite RP2350

All VGA versions:
Implementation of new command
GUI CURSOR
The GUI CURSOR command provides a mechanism for displaying and
manipulating a cursor on the screen. The cursor sits above all other graphics
and nothing can overwrite it.

GUI CURSOR ON [cursorno [,x, y [,cursorcolour] ] ]
Cursor no can be 0 (Default: mouse type pointer) or 1 (cross), in addition the
user can load his own cursor using a SPRITE look-alike file in which case
this is cursor no. 2 For cursor numbers 0 and 1 the programmer can override
the default white cursor by specifying the colour in the open command.

GUI CURSOR x, y
Moves the cursor to x, y. Does not display the cursor if hidden but just
updates the location.

GUI CURSOR OFF
Turns off the cursor

GUI CURSOR HIDE
Hides the cursor but maintains its position

GUI CURSOR SHOW
Shows a hidden cursor in its stored position

GUI CURSOR COLOUR cursorcolour
Changes the colour of cursor number 0 or 1. Does not impact loaded cursors
where its colours are specified by the cursor designer

GUI CURSOR LOAD "fname"
Loads a user cursor from a file in the Maximite sprite format with a minor
change. The header is now Width, Height, Xoffset, Yoffset. The two offsets
determine where on the cursor the pointer is defined to be. So the mouse
cursor has offsets 0,0 and the cross has offsets 7,7

GUI CURSOR LINK MOUSE
GUI CURSOUR UNLINK
MOUSE
These commands link and unlink mouse activity to the cursor. When linked
the cursor will automatically track the mouse activity. The mouse must be
opened using the CONTROLLER MOUSE OPEN command before the
cursor is linked.

VGA and HDMI RP2350 versions
Full GUI command support including new function CLICK (same as CMM2). Note this command effectively substitutes for the TOUCH function when using an touch LCD screen

CLICK(DOWN)
Will return true if the screen is currently being clicked on using the mouse.

CLICK(UP)
Will return true if the screen is currently NOT being clicked on.

CLICK(LASTX)
Will return the X coordinate of the last location that was clicked on.

CLICK(LASTY)
Will return the Y coordinate of the last location that was clicked on.

CLICK(REF)
Will return the reference number of the control that is currently being clicked
on or zero if no control is currently being clicked on.

CLICK(LASTREF)
Will return the reference number of the last control that was clicked on.

Demo program as per the video

'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
' Demonstration program for the Advanced Graphics
' Rescaled for 640x480 display
'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''

Option Explicit
Dim ledsY

MODE 3
Option Console Serial
Colour RGB(white), RGB(black)

' reference numbers for the controls are defined as constants
Const c_head = 1, c_pmp = 2, sw_pmp = 3, c_flow = 4, tb_flow = 5
Const led_run = 6, led_alarm = 7
Const frm_alarm = 20, nbr_hi = 21, nbr_lo = 22, pb_test = 23
Const c_hi = 24, c_lo = 25
Const frm_pump = 30, r_econ = 31, r_norm = 32, r_hi = 33
Const frm_log = 40, cb_enabled = 41, c_fname = 42, tb_fname = 43
Const c_log = 44, cb_flow = 45, cb_pwr = 46, cb_warn = 47
Const cb_alarm = 48, c_bright = 49, sb_bright = 50

Dim Integer x, y, lb, rb, sb, xs, ys, cs, ss

GUI Cursor On 0, MM.HRES\2, MM.VRES\2
GUI cursor link mouse
GUI Interrupt TouchDown, TouchUp

' =========================
' Heading
' =========================
Font 2, 2
GUI Caption c_head, "Pump Control", 10, 0

' =========================
' Pump section
' =========================
Font 4
GUI Caption c_pmp, "Pump", 15, 45, , RGB(brown)

GUI Switch sw_pmp, "ON|OFF", 15, 70, 120, 40, RGB(white), RGB(brown)
CtrlVal(sw_pmp) = 1

Font 4
GUI Caption c_flow, "Flow Rate", 15, 130, , RGB(brown), 0

Font 4
GUI Displaybox tb_flow, 15, 155, 120, 38
CtrlVal(tb_flow) = "20.1"

' =========================
' Power frame and radios
' =========================
Font 4
GUI Frame frm_pump, "Power", 15, 225, 145, 120, RGB(200,20,255)

GUI Radio r_econ, "Economy", 30, 248, 15, RGB(230,230,255)
GUI Radio r_norm, "Normal", 30, 278
GUI Radio r_hi, "High", 30, 308

CtrlVal(r_norm) = 1

' =========================
' Alarm frame
' =========================
Font 4
GUI Frame frm_alarm, "Alarm", 180, 180, 170, 165, RGB(green)

GUI Caption c_hi, "High:", 192, 215, LT, RGB(yellow)

GUI Numberbox nbr_hi, 255, MM.Info(VPOS)-6, 75, MM.Info(FontHeight)+10, RGB(yellow), RGB(64,64,64)

GUI Caption c_lo, "Low:", 192, 260, LT, RGB(yellow), 0

GUI Numberbox nbr_lo, 255, MM.Info(VPOS)-6, 75, MM.Info(FontHeight)+10, RGB(yellow), RGB(64,64,64)

GUI Button pb_test, "TEST", 215, 300, 100, 32, RGB(yellow), RGB(red)

CtrlVal(nbr_lo) = 15.7
CtrlVal(nbr_hi) = 35.5

' =========================
' LEDs
' =========================
Const ledsX = 190

ledsY = 70
GUI LED led_run, "Running", ledsX, ledsY, 12, RGB(green)

ledsY = ledsY + 40
GUI LED led_alarm, "Alarm", ledsX, ledsY, 12, RGB(red)

CtrlVal(led_run) = 1

' =========================
' Logging frame
' =========================
Colour RGB(cyan), 0

GUI Frame frm_log, "Log File", 370, 15, 255, 275, RGB(green)

GUI Checkbox cb_enabled, "Logging Enabled", 385, 40, 25, RGB(cyan)

GUI Caption c_fname, "File Name", 385, 80

GUI Textbox tb_fname, 385, 105, 220, 32, RGB(cyan), RGB(64,64,64)

GUI Caption c_log, "Record:", 385, 160, , RGB(cyan), 0

GUI Checkbox cb_flow, "Flow Rate", 405, 190, 20
GUI Checkbox cb_alarm, "Alarms", 405, 220, 20
GUI Checkbox cb_warn, "Warnings", 405, 250, 20

CtrlVal(cb_enabled) = 1
CtrlVal(tb_fname) = "LOGFILE.TXT"

' =========================
' Backlight control
' =========================
GUI Caption c_bright, "Backlight", 360, 375, , RGB(200,200,255), 0

GUI Spinbox sb_bright, 450, 365, 150, 40, , , 10, 10, 100

CtrlVal(sb_bright) = 50

' =========================
' Main loop
' =========================
Do
Loop

' =========================
' Touch down interrupt
' =========================
Sub TouchDown
Local Integer mbox

Select Case Click(REF)

Case cb_enabled
If CtrlVal(cb_enabled) Then
GUI Restore c_fname, tb_fname, c_log, cb_flow, cb_alarm, cb_warn
Else
mbox = MsgBox("Are you sure?", "YES", "CANCEL")

If mbox = 1 Then
GUI Disable c_fname, tb_fname, c_log, cb_flow, cb_alarm, cb_warn
Else
CtrlVal(cb_enabled) = 1
EndIf
EndIf

Case sb_bright
' BackLight CtrlVal(sb_bright)

Case sw_pmp
CtrlVal(led_run) = CtrlVal(sw_pmp)
CtrlVal(tb_flow) = Str$(CtrlVal(sw_pmp) * 20.1)
CtrlVal(r_norm) = 1

Case pb_test
CtrlVal(led_alarm) = 1

Case r_econ
CtrlVal(tb_flow) = Str$(CtrlVal(sw_pmp) * 18.3)

Case r_norm
CtrlVal(tb_flow) = Str$(CtrlVal(sw_pmp) * 20.1)

Case r_hi
CtrlVal(tb_flow) = Str$(CtrlVal(sw_pmp) * 23.7)

End Select
End Sub

' =========================
' Touch up interrupt
' =========================
Sub TouchUp
Select Case Click(LASTREF)

Case pb_test
CtrlVal(led_alarm) = 0

End Select
End Sub

' =========================
' Mouse cursor handler
' =========================
Function MM.CURSOR(t As Integer) As Integer
Static Float lasttime

If Timer > lasttime + 20 Or Timer < lasttime Then
x = Mouse(x,1)
y = Mouse(y,1)
lb = Mouse(l,1)

lasttime = Timer

GUI Cursor x, y
EndIf

MM.CURSOR = -1

If t = 1 Then
MM.CURSOR = lb
ElseIf t = 2 Then
If lb Then MM.CURSOR = x
ElseIf t = 3 Then
If lb Then MM.CURSOR = y
ElseIf t = 4 Then
MM.CURSOR = lb
Else
MM.CURSOR = lb
EndIf
End Function

' =========================
' Beeper
' =========================
Sub MM.Beep beeptime As Integer
If beeptime And MM.Info(Sound) = "OFF" Then
Play Tone 600, 600, beeptime
EndIf
End Sub

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 5885

Posted: 05:51pm 22 May 2026

Copy link to clipboard

Print this post

Peter,

60300cr9 seemed to have fixed the PIO problem. But today I took a brand new 2040 zero, programmed it with rc9 mini, and the PIO program would not run. Same issue.
I did release the application with 60201 today, so there is no demand for a Quick fix, but be informed that there still is an issue with 60300 and PIO.
As if there is something not initialized, that depending the hardware sometimes works.

Volhout

As I type this I pack for holiday, so next week I cannot support.
Edited 2026-05-23 03:54 by Volhout

PicomiteVGA PETSCII ROBOTS

terekgabor
Regular Member

Joined: 02/01/2026
Location: Hungary
Posts: 81

Posted: 06:07pm 22 May 2026

Copy link to clipboard

Print this post

Peter,

Soon you can call it v6.04.00

G@bor

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 347

Posted: 07:05pm 22 May 2026

Copy link to clipboard

Print this post

G'day Peter,
What can I say except thanks once again, this has been on the wish list to make HDMI touch work for a very long time.

It is amazing what is now possible with the right silicon and the right mind driving the firmware, plus a little help from the AI genie no doubt.

I may have missed something obvious as usual, is there a way to send a screen click from MMBasic?
If not would GUI CURSOR x,y,c with c for click 0/1 or a CLICK command be possible?

Regards, Lyle.

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 347

Posted: 08:55pm 22 May 2026

Copy link to clipboard

Print this post

G'day,

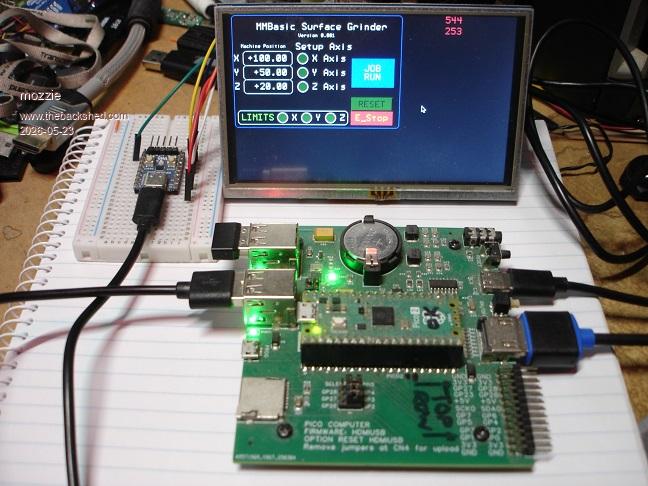

Should have been in bed hours ago but couldn't resist giving this a try

Initial testing shows this is an awesome concept, can now do HDMI with touch quite easily

Couple of minor bugs plus the previous comment above regarding CLICK:

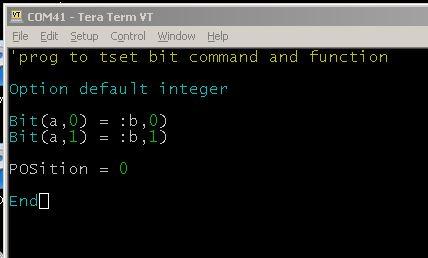

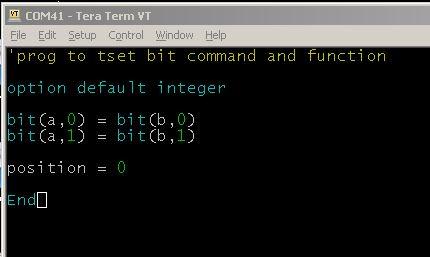

BIT command is replaced with : in programs.
pos becomes POS in command and variable names.

The Pico-Zero showed up as a USB drive a couple of times but a pattern is hard to discern.

> option list
PicoMiteHDMI MMBasic USB RP2350A Edition V6.03.00RC11
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION RESOLUTION 800x480 @ 333000KHz
OPTION DISPLAY 40, 100
>

Now its time for bed as the sun comes up

Regards, Lyle.

JanVolk
Guru

Joined: 28/01/2023
Location: Netherlands
Posts: 354

Posted: 11:10pm 22 May 2026

Copy link to clipboard

Print this post

Peter,

I do see PicoMiteHDMIV6.03.00RC11.uf2 but not PicoMiteHDMIUSBV6.03.00RC11.uf2 in the list?

Sorry. Loaded and unpacked again and it is correct now.

Jan.
Edited 2026-05-23 10:28 by JanVolk

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11367

Posted: 06:36am 23 May 2026

Copy link to clipboard

Print this post

Quote BIT command is replaced with : in programs.

Can't replicate - please post a program that demonstrates the issue

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 493

Posted: 06:37am 23 May 2026

Copy link to clipboard

Print this post

Peter,

great job, congrats!!! Thank you so much for the time and effort you spend.

Just another idea ... if we could have commands like "GUI CLICK DOWN" and "GUI CLICK UP" which emulates a touch/mouse button action at the current cursor position, it would be possible to control the GUI subsystem remotely, say from inputs of analog pins for the cursor and external hardware for the CLICK action. So one could build its own man-to-GUI interface from whatever data source is available. It could also lead to automation scripts for GUI interaction and other weired stuff.

Gerald

73 de OE1HGA, Gerald

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11367

Posted: 06:40am 23 May 2026

Copy link to clipboard

Print this post

Quote The Pico-Zero showed up as a USB drive a couple of times but a pattern is hard to discern.

This will happen if the Pico is in boot mode or if you somehow get it into boot mode (communicate at 1200 baud)

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 493

Posted: 07:50am 23 May 2026

Copy link to clipboard

Print this post

@Peter,

there is probably an issue with BIT function in RC11:

Quote '
OPTION EXPLICIT
OPTION DEFAULT NONE

dim integer abc

if bit(abc,0)=0 then
print
end if

the BIT function is changed into

Quote :abc,0)=0 then

as always, forgot the version ....
PicoMiteHDMI MMBasic USB RP2350B Edition V6.03.00RC11
Edited 2026-05-23 17:51 by ville56

73 de OE1HGA, Gerald

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 347

Posted: 07:52am 23 May 2026

Copy link to clipboard

Print this post

G'day Peter,
Not the original program but typing the following into the editor:

Save and re-open editor becomes:

Also won't work at command prompt:

> bit(a,2)=bit(a,3)
Error : Cannot find A
> dim a
> bit(a,2)=bit(a,3)
Error : Invalid syntax
>

So it looks like the function is playing up rather than the command.

Downloaded and reloaded firmware, also did CLEAR_FLASH_RP2350 twice, to be sure, to be sure...

Looks like the Pico-Zero is not resetting properly due to power via the interrupt pull-up, please ignore.

Before I get too far messing around with the Pico-Zero sending touch via USC-CDC, are you considering adding resistive touch support for the GUI functions in the VGI/HDMI firmware or is this a step to far?

P.S. Can anyone remind me how to clear the Cache on WIN7-32bit, had a brain fade and can't remember

Regards, Lyle.

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 493

Posted: 08:05am 23 May 2026

Copy link to clipboard

Print this post

mozzie said
... are you considering adding resistive touch support for the GUI functions in the VGI/HDMI firmware or is this a step to far?

is there any hardware available for res-touch with HDMI/VGA monitors that will support that screens (and the controller supported by MMBasic)?

73 de OE1HGA, Gerald

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 347

Posted: 08:13am 23 May 2026

Copy link to clipboard

Print this post

G'day Gerald,
There are quite a few available with the XPT2046 resistive touch in 4" to 12" sizes, hence the question on this specific controller, as support is already in the LCD firmware.

The pic in the post above has a Pico-Zero reading the XPT2046 on the 5" touchscreen and sending the co-ordinates via USB-CDC to the PicoMite HDMIUSB. I guess the advantage of this is you only use 8 pins for the HDMI, none more required for touch etc.

Don't want to waste time on taking this idea further if Peter is thinking of baking it into the firmware.

Regards, Lyle.
Edited 2026-05-23 18:13 by mozzie

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11367

Posted: 08:34am 23 May 2026

Copy link to clipboard

Print this post

Quote So it looks like the function is playing up rather than the command.

Bummer, I've run out of function tokens and BIT( is the last one defined. Some nasty surgery needed.

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 1124

Posted: 09:15am 23 May 2026

Copy link to clipboard

Print this post

matherp said
Bummer, I've run out of function tokens and BIT( is the last one defined. Some nasty surgery needed.

I was thinking function CWD$ is a likely candidate for an overlaid function, it should not be in use where performance is an issue.

F4 H7 FotS F4xGT

flip
Senior Member

Joined: 18/07/2016
Location: Australia
Posts: 124

Posted: 09:27am 23 May 2026

Copy link to clipboard

Print this post

I seem to be having an issue running the demo above from PSRAM

> ram file load 1,"Demo_503b11.bas",o
> ram run 1
[33] GUI Caption c_head, "Pump Control", 10, 0
Error : No memory allocated for GUI controls

So I looked for a config in the CMM2 GUI features manual

> OPTION MAXCTRLS 100
Error : Invalid Option
>

But not sure...I'm using the HDMI Quad USB board from Silicon Chip. These are my options:
PicoMiteHDMI MMBasic USB RP2350B Edition V6.03.00RC11
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP20,GP21
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD US, 0, 1, 200, 50
OPTION PICO OFF
OPTION RESOLUTION 1280x720 @ 372000KHz
OPTION DISPLAY 30, 80
OPTION HDMI PINS 1, 3, 5, 7
OPTION SDCARD GP29, GP30, GP31, GP32
OPTION KEYBOARD REPEAT 200,50
OPTION AUDIO I2S GP10,GP22', ON PWM CHANNEL 11
OPTION RTC AUTO ENABLE
OPTION COUNT GP0,GP1,GP2,GP3
OPTION MODBUFF ENABLE 512
OPTION PLATFORM HDMIUSBI2S
OPTION PSRAM PIN GP47
OPTION HEARTBEAT PIN GP25

Any ideas? I'm sure it's something basic. Regards Phil
I tried changing to 640x480 and tried loading into the normal execution memory in case these were causing the issue, but still same error. Next try is some weird copy/paste error.
Edited 2026-05-23 19:35 by flip

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 3229

Posted: 09:42am 23 May 2026

Copy link to clipboard

Print this post

From PicoMite Advanced Graphics manual in Extra Documentation folder.

OPTION GUI CONTROLS 75

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 752

Posted: 09:45am 23 May 2026

Copy link to clipboard

Print this post

Wow Peter,

GUI commands are now available with the normal VGA & HDMI versions? This is such a huge benefit, since my own written GUI program needs a lot of program space.

Thank you for making this availavle to the "normal" VGA & HDMI versions!

Greetings
Daniel

flip
Senior Member

Joined: 18/07/2016
Location: Australia
Posts: 124

Posted: 09:50am 23 May 2026

Copy link to clipboard

Print this post

Thanks phil99 - that fixed it! - I must have had an old copy of the manual
Regards Phil
Edited 2026-05-23 19:51 by flip

Page 10 of 12

Print this page
